Timing Parts & Camshafts

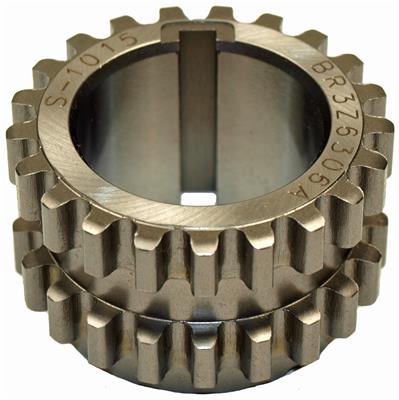

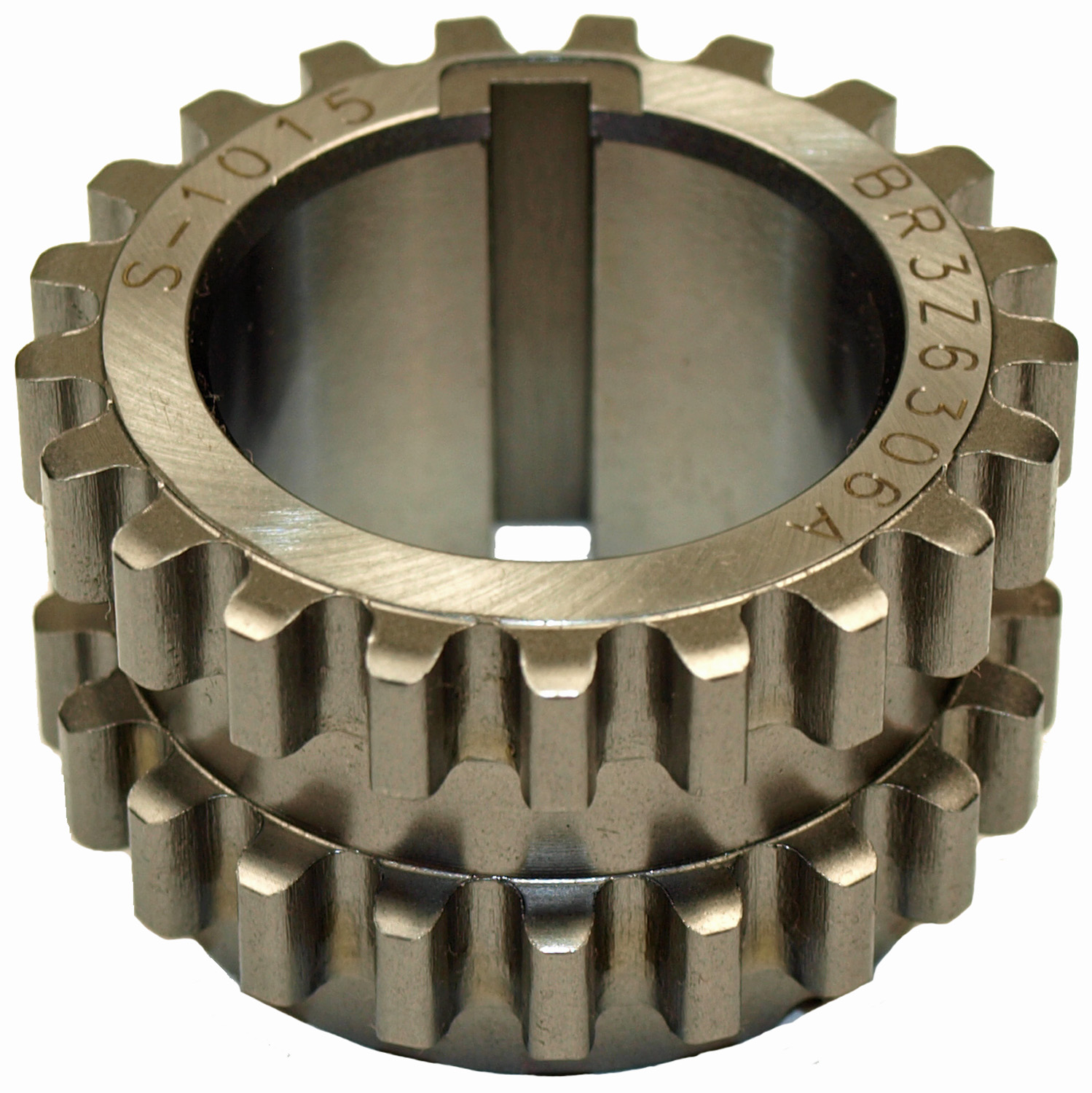

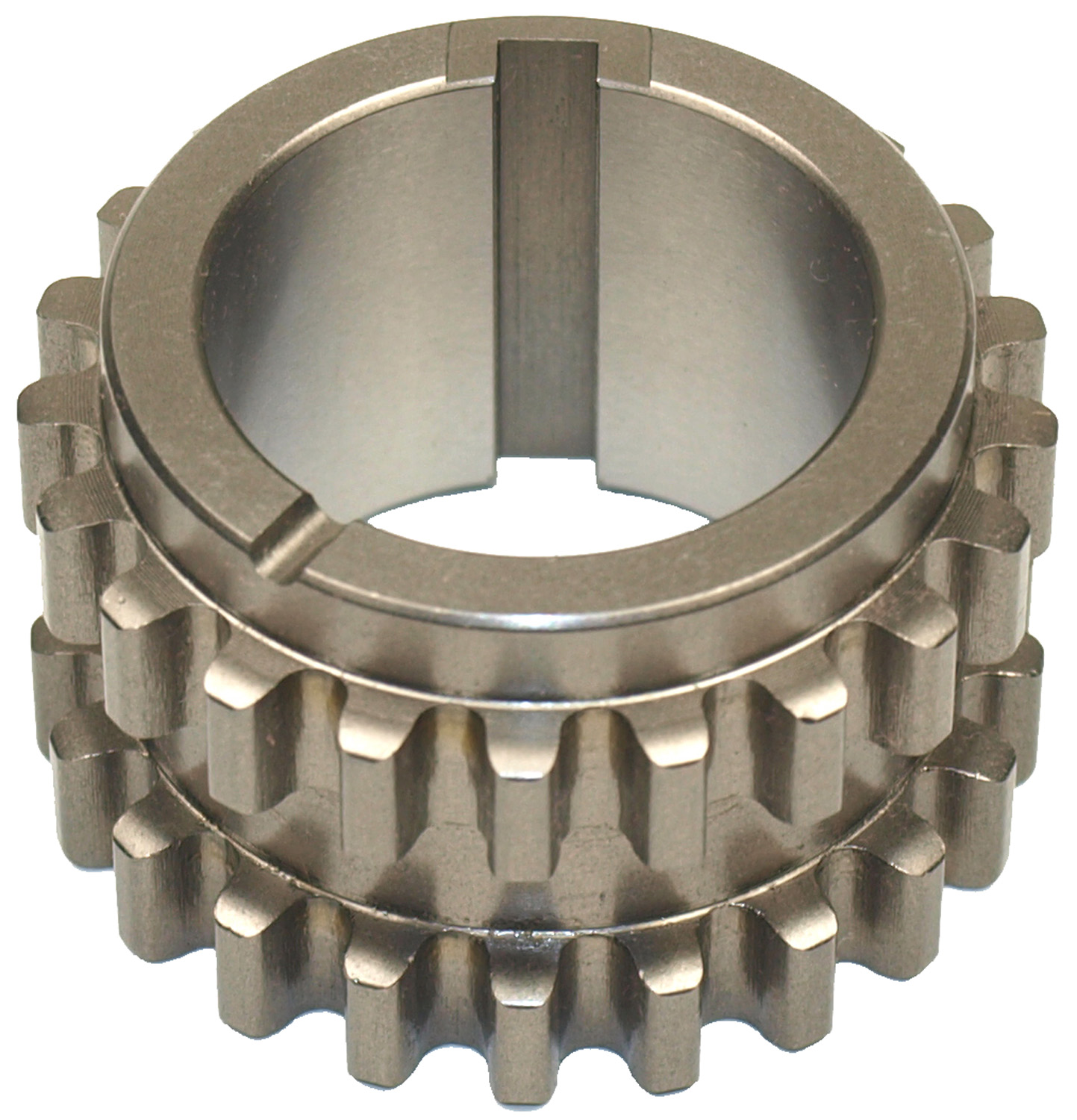

Engine Timing Crankshaft Sprocket
Part # S1015 | Line Code: CLY
brandNameImage
brandNameImage

$34.95
$34.95
error
Not Fitted

Product Details
expand_less
Inside Diameter 31.8262
Outside Diameter 49.8856
Tooth Quantity 21
Material Steel
Mounting Hole Diameter (uom:mm) 31.8262
Tooth Width (uom:in) 0.325
Tooth Width (uom:mm) 8.26
Width (uom:in) 1.175
Mounting Hole Diameter (uom:in) 1.253
Width (uom:mm) 29.845
Chain Row Quantity 2
Mounting Hole Quantity 1
Keyway Notch Yes
Timing Mark Quantity 1
Part Terminology Engine Timing Crankshaft Sprocket

Features & Benefits
expand_more
Since 1921, Cloyes has been the trusted leader in automotive timing systems. As a critical component of the engine’s timing system, the crankshaft sprockets work in unison with the timing chain, tensioners, guides and other sprockets, to ensure precise timing. Cloyes engine timing crankshaft sprockets are precision-tooled with exact tooth geometry and a perfectly matched bore, off-set and timing index for superior fit, reliability, and long-term performance. To ensure total timing system integrity, Cloyes recommends replacing the chain along with the tensioners, guides, and sprockets during service. Trusted by professionals for over a century & backed by an industry-leading warranty and technical support.
