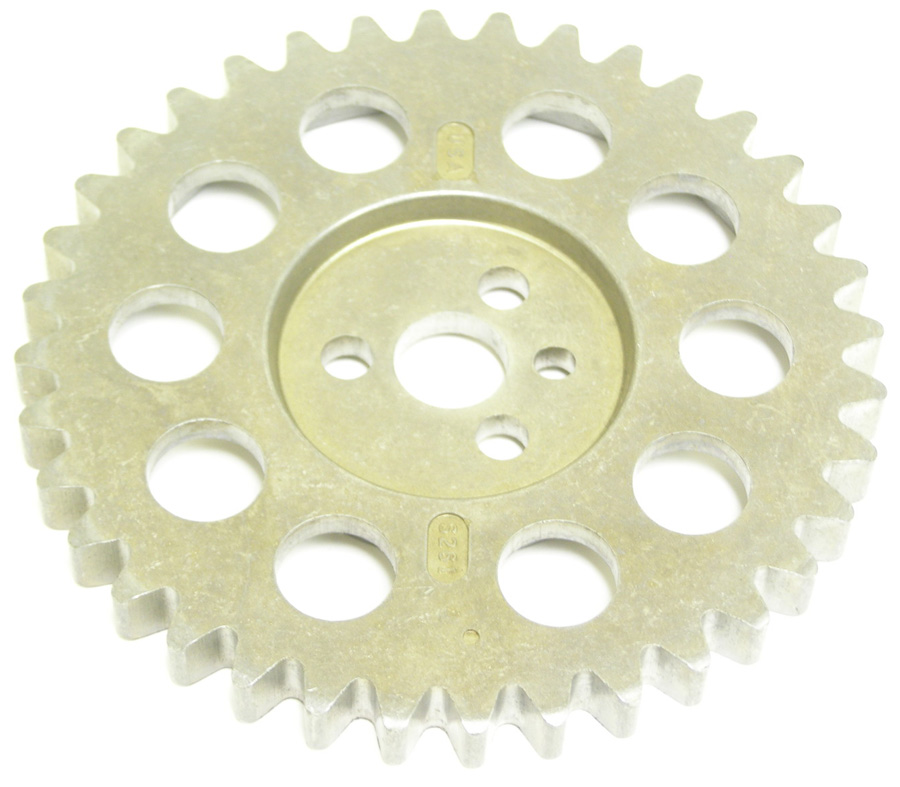

Engine Timing Camshaft Sprocket

Part # S261T | Line Code: CLY

$19.99

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Chain Row Quantity	1
Thrust Bearing Included	N/A
Tooth Width	0.53"
Outside Diameter	5.69"
Mount Hole Inside Diameter	0.34"/0.34"/0.34"
Thickness	0.58"
Inside Diameter	22.352
Mounting Hole Quantity	3
Adjustable	No
Keyway Notch	No
Color	Black
Material	Metal
Universal Or Specific Fit	Specific
Tooth Quantity	36
Outside Diameter (In)	5.69"
Tooth Width (in)	0.53"
Mounting Hole Diameter (uom:in)	0.340
Tooth Width (uom:in)	0.53
Tooth Width (uom:mm)	13.462
Width (uom:in)	0.57999999999999996
Width (uom:mm)	14.731999999999999
Mounting Hole Diameter (uom:mm)	8.64
Outside Diameter (uom:in)	5.69
Outside Diameter (uom:mm)	144.52600000000001
Mount Hole Quantity	3
Mount Hole Diameter	0.34"/0.34"/0.34"
Timing Mark Quantity	1
Part Terminology	Engine Timing Camshaft Sprocket

Features & Benefits

Featuring precision-tooled or machined tooth form and precision-machined bore for true fit, timing chain sprockets offer reliability and dependability for engine rebuilds and typical replacement jobs; Recommended that the chain tensioner(s), sprocket(s), and guide(s) also be replaced when the chain is replaced, as these components play a vital role in system stability and accurate timing; CAD designed and manufactured using premium materials; Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance; Refer to our online catalog for detailed application-specific information
