Timing Parts & Camshafts

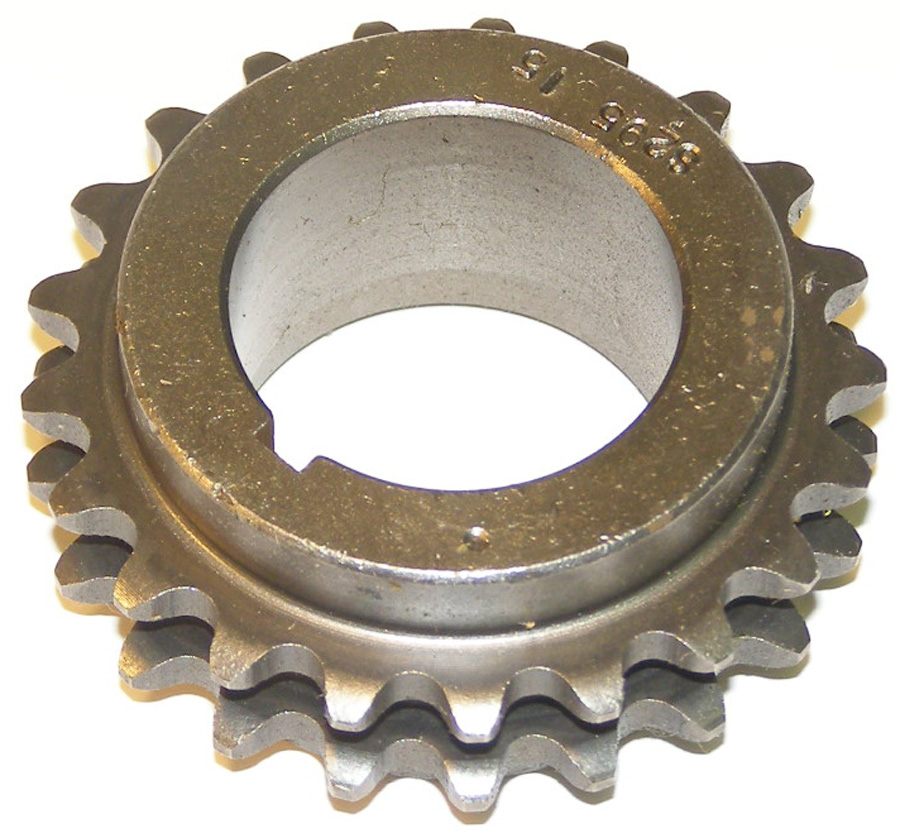

Engine Timing Crankshaft Sprocket
Part # S295 | Line Code: CLY
brandNameImage
brandNameImage

$40.95
$40.95
error
Not Fitted

Product Details
expand_less
Outside Diameter 68.326
Thrust Bearing Included N/A
Mount Hole Inside Diameter 1.38"
Tooth Width 0.16"/0.16"
Thickness 1.21"
Chain Row Quantity 2
Mounting Hole Quantity 1
Adjustable No
Tooth Quantity 21
Keyway Notch Yes
Material Steel
Color Gray
Universal Or Specific Fit Specific
Inside Diameter 35.052
Tooth Width (in) 0.16"/0.16"
Mounting Hole Diameter (uom:in) 1.38
Mounting Hole Diameter (uom:mm) 35.052
Tooth Width (uom:in) 0.160
Tooth Width (uom:mm) 4.06
Mount Hole Quantity 1
Mount Hole Diameter 1.38"
Timing Mark Quantity 1
Width (uom:in) 1.21
Width (uom:mm) 30.734
Part Terminology Engine Timing Crankshaft Sprocket

Features & Benefits
expand_more
Since 1921, Cloyes has been the trusted leader in automotive timing systems. As a critical component of the engine’s timing system, the crankshaft sprockets work in unison with the timing chain, tensioners, guides and other sprockets, to ensure precise timing. Cloyes engine timing crankshaft sprockets are precision-tooled with exact tooth geometry and a perfectly matched bore, off-set and timing index for superior fit, reliability, and long-term performance. To ensure total timing system integrity, Cloyes recommends replacing the chain along with the tensioners, guides, and sprockets during service. Trusted by professionals for over a century & backed by an industry-leading warranty and technical support.
