Timing Parts & Camshafts

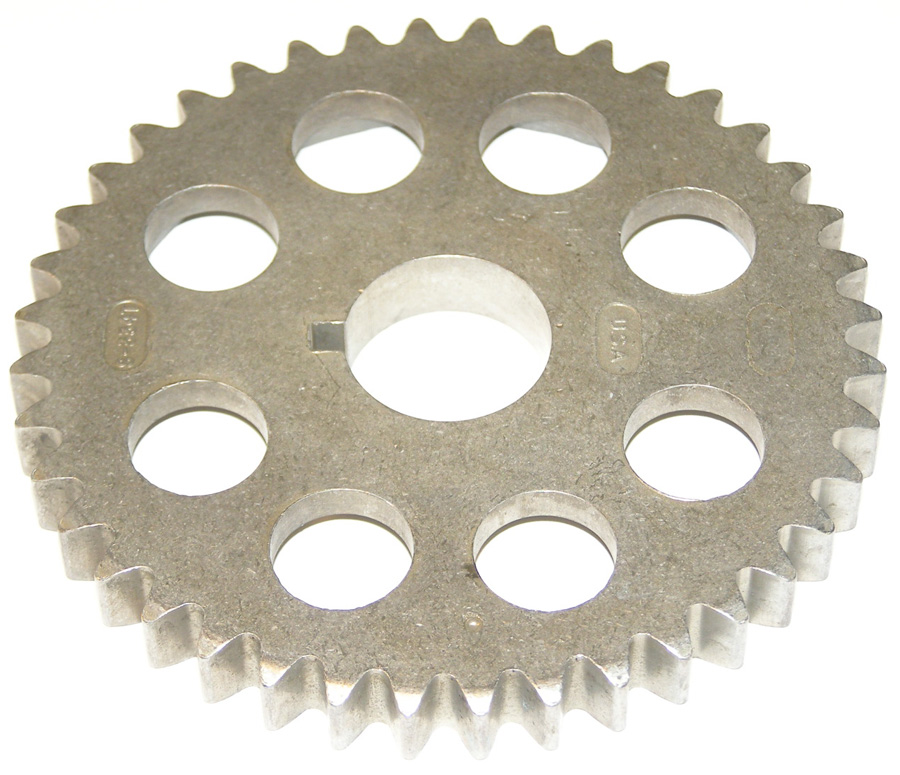

Engine Timing Camshaft Sprocket
Part # S334T | Line Code: CLY
brandNameImage
brandNameImage

$15.99
$15.99
error
Not Fitted

Product Details
expand_less
Chain Row Quantity 1
Thrust Bearing Included N/A
Tooth Width 0.53"
Mount Hole Inside Diameter 1.13"
Thickness 0.53"
Outside Diameter 4.78"
Inside Diameter 28.702
Mounting Hole Quantity 1
Adjustable No
Keyway Notch Yes
Color Gray
Material Metal
Universal Or Specific Fit Specific
Tooth Quantity 40
Tooth Width (in) 0.53"
Outside Diameter (In) 4.78"
Tooth Width (uom:in) 0.53
Tooth Width (uom:mm) 13.462
Width (uom:in) 0.53
Width (uom:mm) 13.462
Outside Diameter (uom:in) 4.78
Mounting Hole Diameter (uom:in) 1.13
Mounting Hole Diameter (uom:mm) 28.702
Outside Diameter (uom:mm) 121.412
Mount Hole Quantity 1
Mount Hole Diameter 1.13"
Timing Mark Quantity 1
Part Terminology Engine Timing Camshaft Sprocket

Features & Benefits
expand_more
Since 1921, Cloyes has been the trusted leader in automotive timing systems. As a critical component of the engine’s timing system, the camshaft sprockets work in unison with the timing chain, tensioners, guides, and other sprockets, to ensure precise timing. Cloyes engine timing crankshaft sprockets are precision-tooled with exact tooth geometry and a perfectly matched bore for superior fit, reliability, and long-term performance. To ensure total timing system integrity, Cloyes recommends replacing the chain along with the tensioners, guides, and sprockets during service. Trusted by professionals for over a century & backed by an industry-leading warranty and technical support.
