Timing Parts & Camshafts

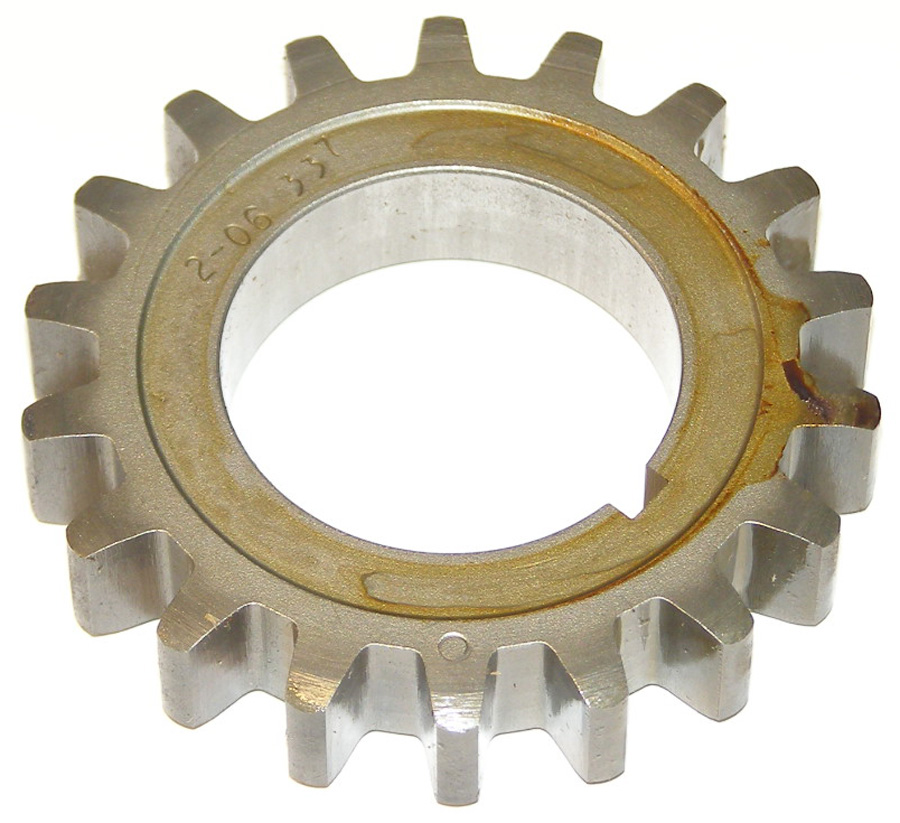

Engine Timing Crankshaft Sprocket
Part # S337 | Line Code: CLY
brandNameImage
brandNameImage

$58.95
$58.95
error
Not Fitted

Product Details
expand_less
Outside Diameter 72.136
Chain Row Quantity 1
Thrust Bearing Included N/A
Tooth Width 0.52"
Mount Hole Inside Diameter 1.50"
Thickness 0.58"
Inside Diameter 38.1
Mounting Hole Quantity 1
Adjustable No
Tooth Quantity 18
Keyway Notch Yes
Material Steel
Color Gray
Universal Or Specific Fit Specific
Tooth Width (in) 0.52"
Tooth Width (uom:in) 0.52
Tooth Width (uom:mm) 13.208
Mounting Hole Diameter (uom:in) 1.5
Mounting Hole Diameter (uom:mm) 38.1
Width (uom:in) 0.58
Width (uom:mm) 14.732
Mount Hole Quantity 1
Mount Hole Diameter 1.50"
Timing Mark Quantity 1
Part Terminology Engine Timing Crankshaft Sprocket

Features & Benefits
expand_more
Since 1921, Cloyes has been the trusted leader in automotive timing systems. As a critical component of the engine’s timing system, the crankshaft sprockets work in unison with the timing chain, tensioners, guides and other sprockets, to ensure precise timing. Cloyes engine timing crankshaft sprockets are precision-tooled with exact tooth geometry and a perfectly matched bore, off-set and timing index for superior fit, reliability, and long-term performance. To ensure total timing system integrity, Cloyes recommends replacing the chain along with the tensioners, guides, and sprockets during service. Trusted by professionals for over a century & backed by an industry-leading warranty and technical support.
