Timing Parts & Camshafts

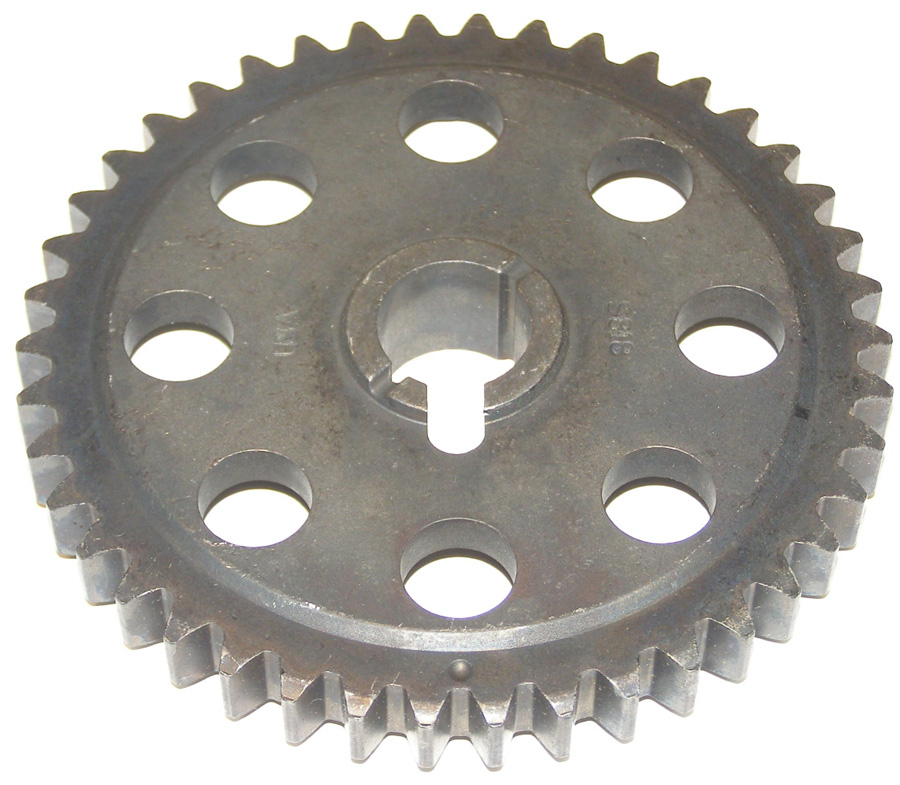

Engine Timing Camshaft Sprocket
Part # S818T | Line Code: CLY
brandNameImage
brandNameImage

$24.95
$24.95
error
Not Fitted

Product Details
expand_less
Chain Row Quantity 1
Thrust Bearing Included N/A
Thickness 0.91"
Tooth Width 0.53"
Mount Hole Inside Diameter 0.88"
Outside Diameter 5.00"
Inside Diameter 22.352
Mounting Hole Quantity 1
Adjustable No
Keyway Notch Yes
Color Gray
Material Metal
Universal Or Specific Fit Specific
Tooth Quantity 42
Tooth Width (in) 0.53"
Outside Diameter (In) 5.00"
Width (uom:mm) 23.114000000000001
Tooth Width (uom:in) 0.53
Tooth Width (uom:mm) 13.462
Mounting Hole Diameter (uom:in) 0.88
Mounting Hole Diameter (uom:mm) 22.352
Outside Diameter (uom:in) 5
Outside Diameter (uom:mm) 127
Mount Hole Quantity 1
Mount Hole Diameter 0.88"
Timing Mark Quantity 1
Width (uom:in) 0.91
Part Terminology Engine Timing Camshaft Sprocket

Features & Benefits
expand_more
Featuring precision-tooled or machined tooth form and precision-machined bore for true fit, timing chain sprockets offer reliability and dependability for engine rebuilds and typical replacement jobs; Recommended that the chain tensioner(s), sprocket(s), and guide(s) also be replaced when the chain is replaced, as these components play a vital role in system stability and accurate timing; CAD designed and manufactured using premium materials; Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance; Refer to our online catalog for detailed application-specific information
