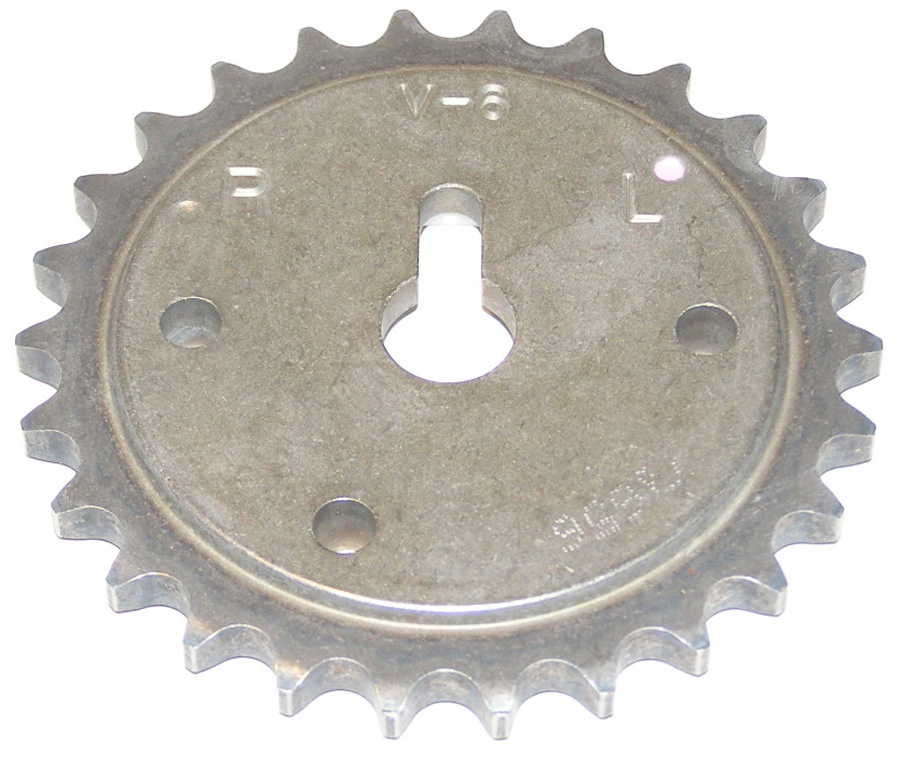

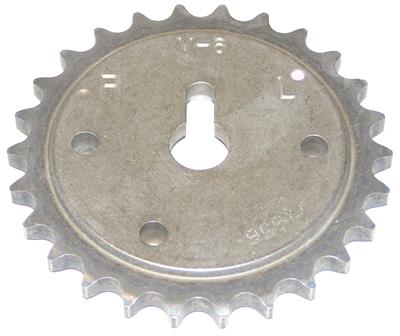

Engine Timing Camshaft Sprocket Cloyes S824

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

Engine Timing Camshaft Sprocket

Part # S824 | Line Code: CLY

$35.95

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Inside Diameter	12.446
Chain Row Quantity	1
Tooth Quantity	26
Thrust Bearing Included	N/A
Mount Hole Inside Diameter	0.49"
Tooth Width	0.21"
Outside Diameter	3.21"
Thickness	0.35"
Mounting Hole Quantity	1
Adjustable	No
Keyway Notch	Yes
Color	Gray
Material	Metal
Universal Or Specific Fit	Specific
Tooth Width (in)	0.21"
Outside Diameter (In)	3.21"
Tooth Width (uom:mm)	5.3339999999999996
Tooth Width (uom:in)	0.21
Mounting Hole Diameter (uom:mm)	12.446
Outside Diameter (uom:in)	3.21
Outside Diameter (uom:mm)	81.534000000000006
Width (uom:in)	0.35
Width (uom:mm)	8.89
Mount Hole Quantity	1
Mount Hole Diameter	0.49"
Timing Mark Quantity	2
Mounting Hole Diameter (uom:in)	0.49
Part Terminology	Engine Timing Camshaft Sprocket

Features & Benefits

Featuring precision-tooled or machined tooth form and precision-machined bore for true fit, timing chain sprockets offer reliability and dependability for engine rebuilds and typical replacement jobs; Recommended that the chain tensioner(s), sprocket(s), and guide(s) also be replaced when the chain is replaced, as these components play a vital role in system stability and accurate timing; CAD designed and manufactured using premium materials; Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance; Refer to our online catalog for detailed application-specific information
