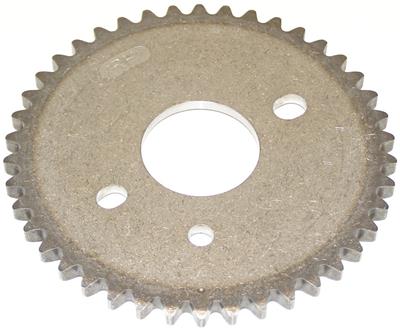

Engine Timing Camshaft Sprocket Cloyes S840

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

Engine Timing Camshaft Sprocket

Part # S840 | Line Code: CLY

$46.95

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Inside Diameter	37.845999999999997
Chain Row Quantity	1
Thrust Bearing Included	N/A
Outside Diameter	5.01"
Thickness	0.27"
Tooth Width	0.27"
Mount Hole Inside Diameter	0.40"/0.45"
Mounting Hole Quantity	2
Adjustable	No
Keyway Notch	No
Color	Gray
Material	Metal
Universal Or Specific Fit	Specific
Tooth Quantity	42
Outside Diameter (In)	5.01"
Tooth Width (in)	0.27"
Width (uom:in)	0.27
Width (uom:mm)	6.8579999999999997
Outside Diameter (uom:in)	5.01
Outside Diameter (uom:mm)	127.254
Tooth Width (uom:in)	0.27
Tooth Width (uom:mm)	6.8579999999999997
Mounting Hole Diameter (uom:in)	0.450
Mounting Hole Diameter (uom:mm)	10.16, 11.43
Mount Hole Quantity	2
Mount Hole Diameter	0.40"/0.45"
Timing Mark Quantity	1
Part Terminology	Engine Timing Camshaft Sprocket

Features & Benefits

Featuring precision-tooled or machined tooth form and precision-machined bore for true fit, timing chain sprockets offer reliability and dependability for engine rebuilds and typical replacement jobs; Recommended that the chain tensioner(s), sprocket(s), and guide(s) also be replaced when the chain is replaced, as these components play a vital role in system stability and accurate timing; CAD designed and manufactured using premium materials; Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance; Refer to our online catalog for detailed application-specific information
