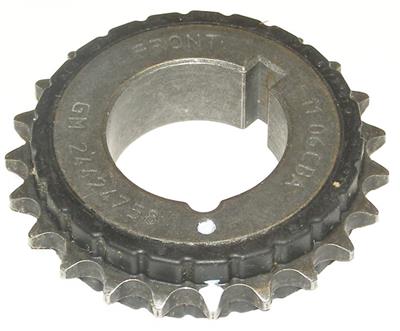

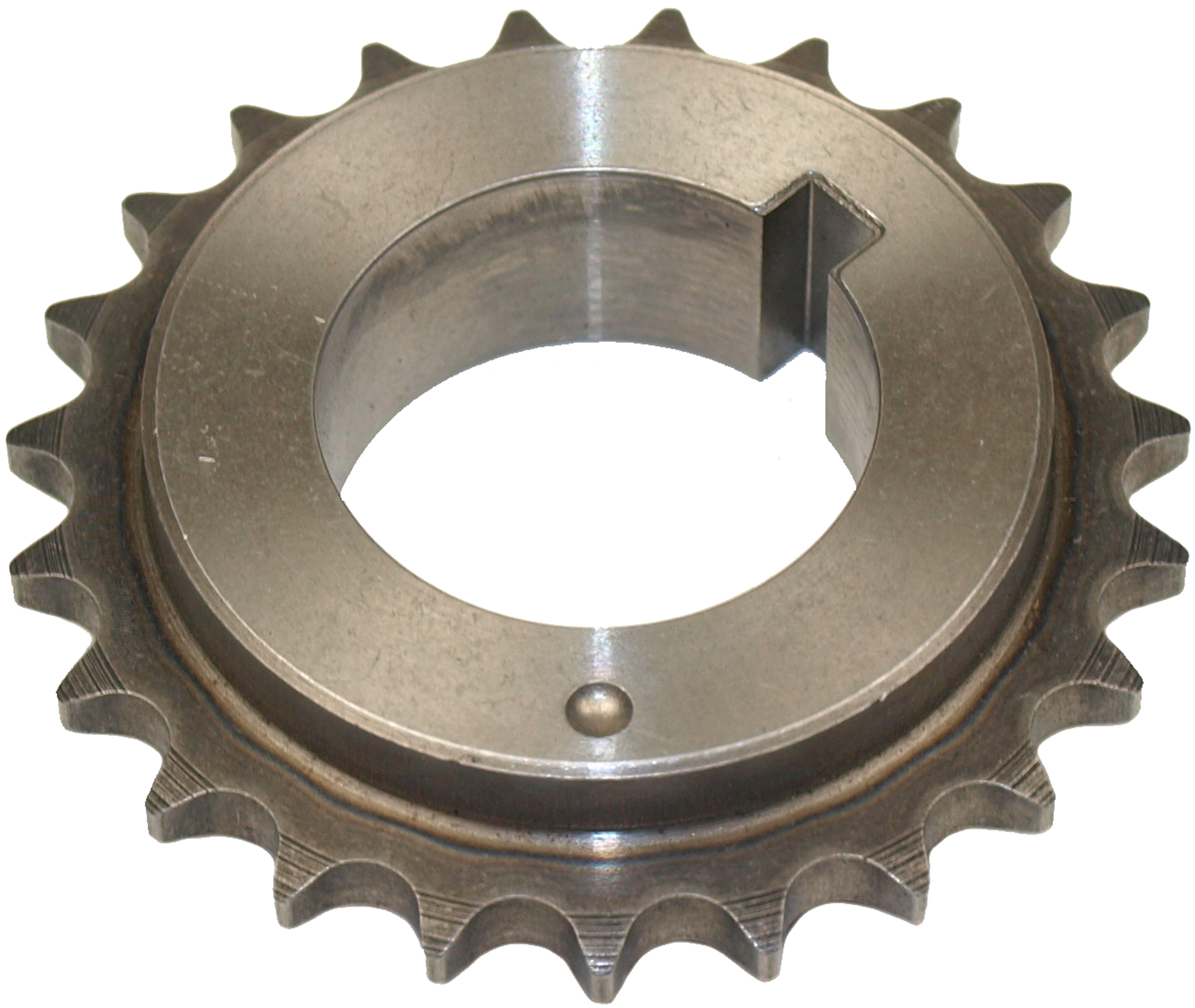

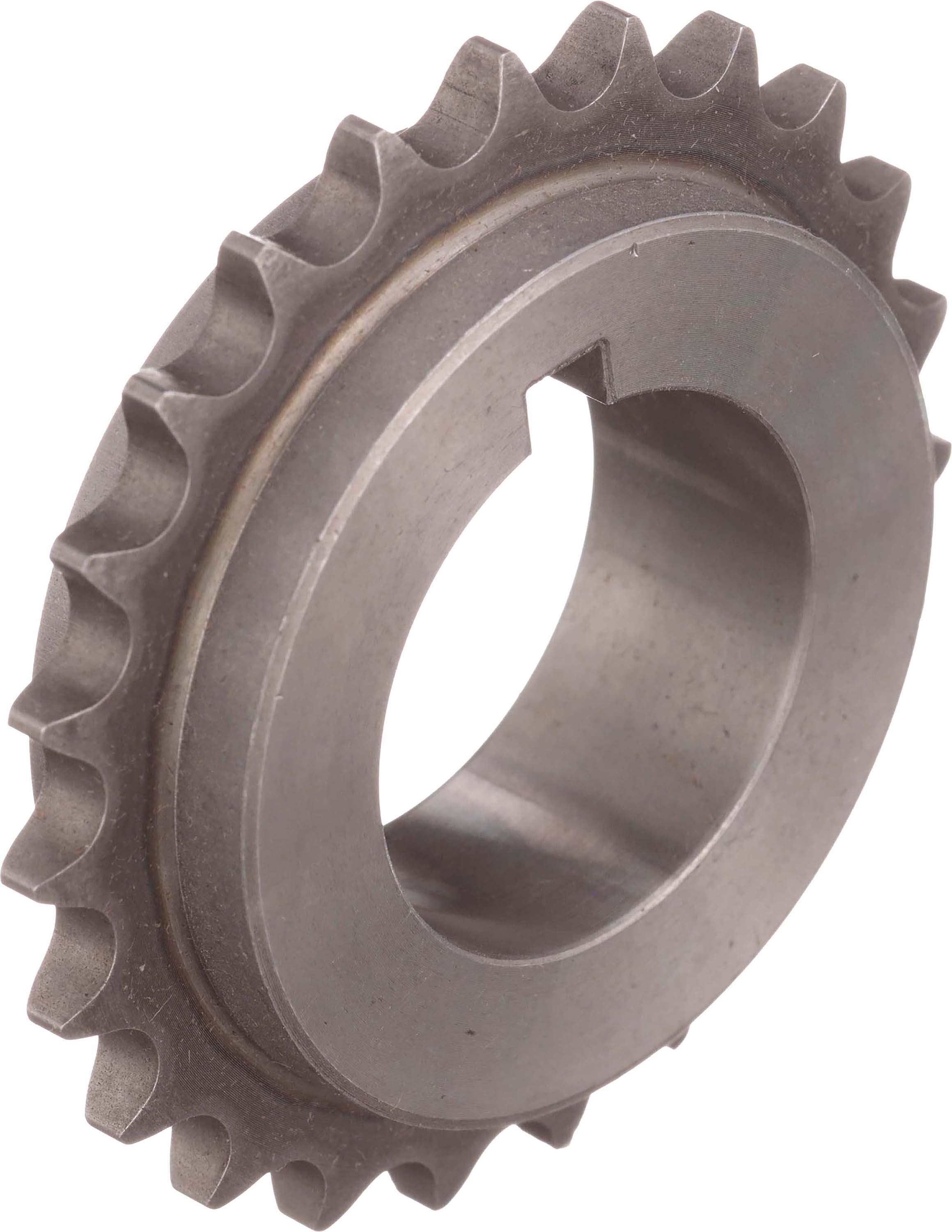

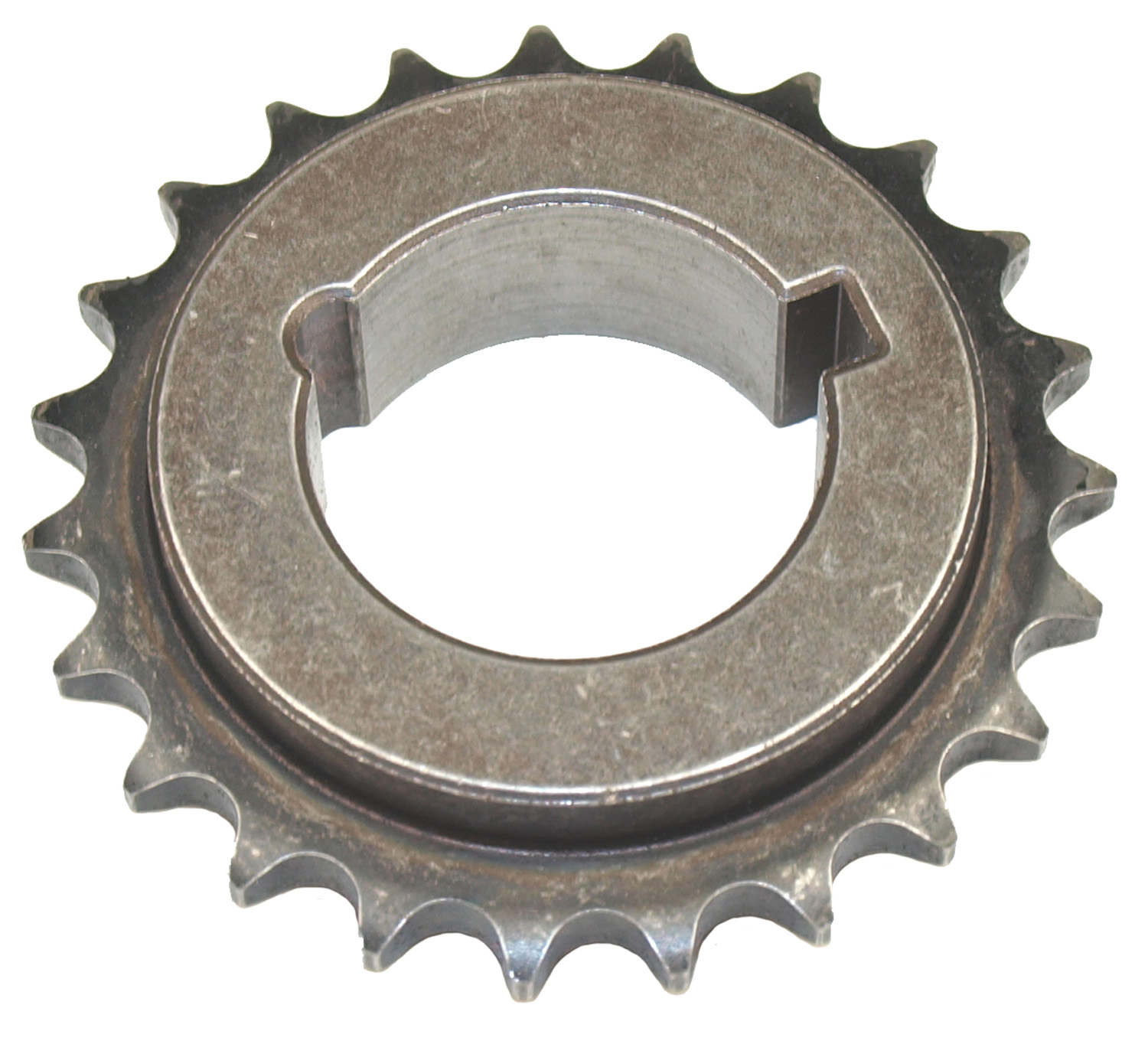

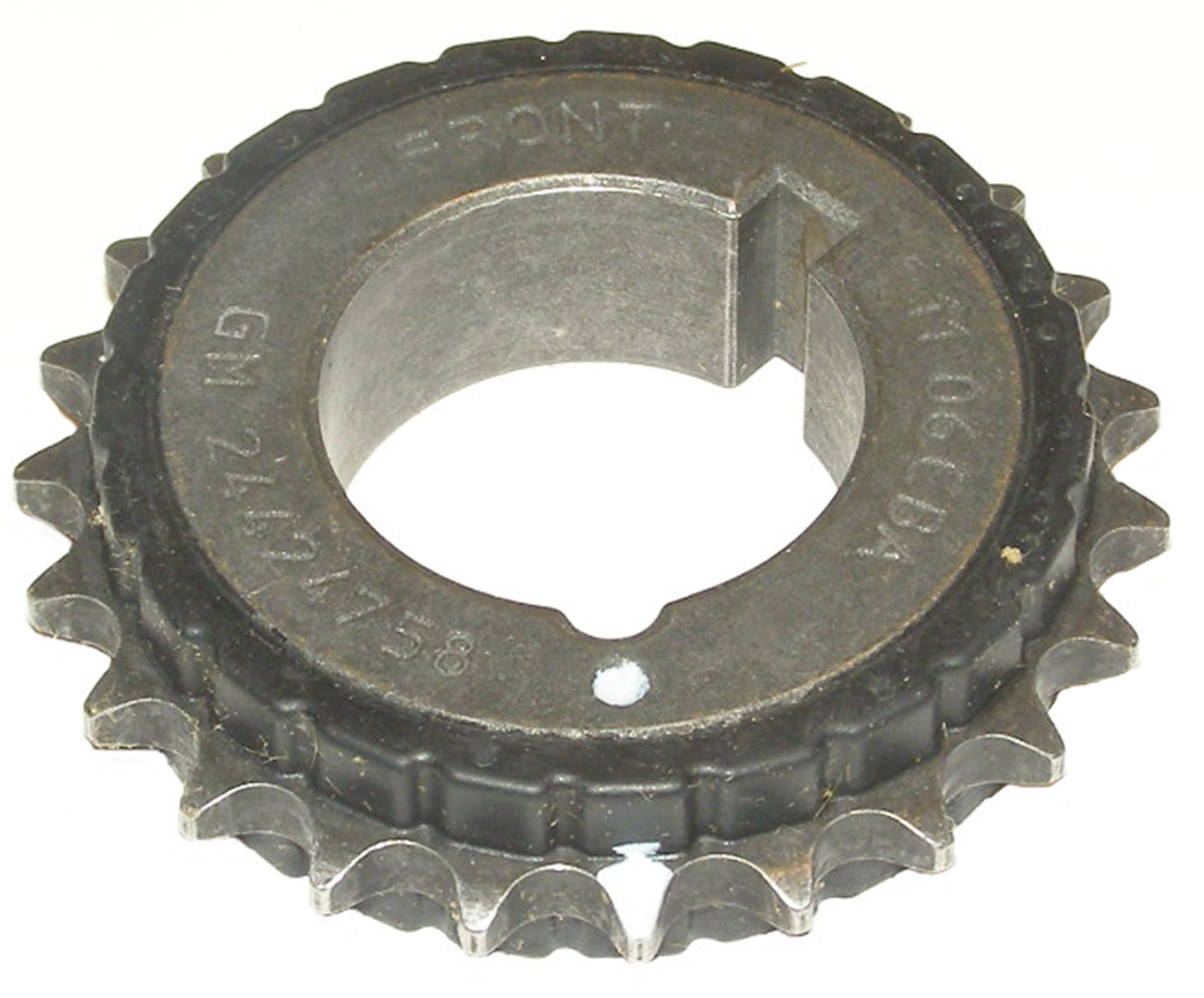

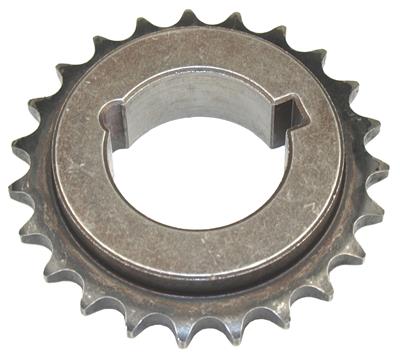

Engine Timing Crankshaft Sprocket Cloyes S849

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

Engine Timing Crankshaft Sprocket

Part # S849 | Line Code: CLY

$35.95

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Outside Diameter	60.198
Chain Row Quantity	1
Thrust Bearing Included	N/A
Thickness	0.59"
Mount Hole Inside Diameter	1.10"
Tooth Width	0.16"
Inside Diameter	27.94
Mounting Hole Quantity	1
Adjustable	No
Keyway Notch	Yes
Color	Gray
Material	Metal
Universal Or Specific Fit	Specific
Tooth Quantity	23
Tooth Width (in)	0.16"
Width (uom:mm)	14.986000000000001
Tooth Width (uom:in)	0.16
Tooth Width (uom:mm)	4.0640000000000001
Mounting Hole Diameter (uom:in)	1.1000000000000001
Mounting Hole Diameter (uom:mm)	27.94
Mount Hole Quantity	1
Mount Hole Diameter	1.10"
Timing Mark Quantity	1
Width (uom:in)	0.59
Part Terminology	Engine Timing Crankshaft Sprocket

Features & Benefits

Featuring precision-tooled or machined tooth form and precision-machined bore for true fit, timing chain sprockets offer reliability and dependability for engine rebuilds and typical replacement jobs; Recommended that the chain tensioner(s), sprocket(s), and guide(s) also be replaced when the chain is replaced, as these components play a vital role in system stability and accurate timing; CAD designed and manufactured using premium materials; Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance; Refer to our online catalog for detailed application-specific information
