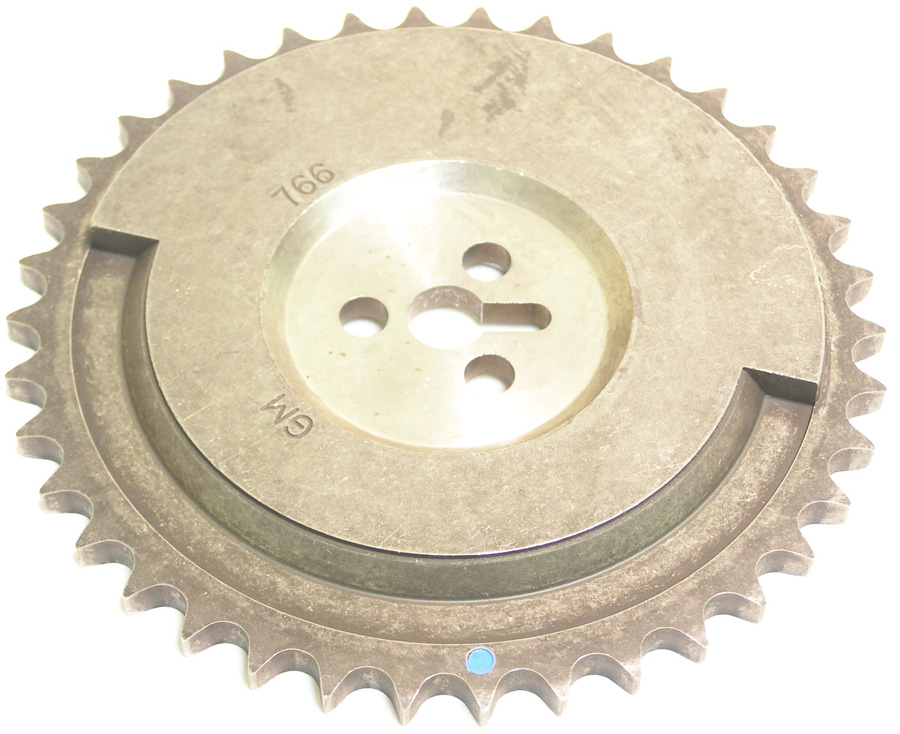

Engine Timing Camshaft Sprocket Cloyes S892T

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

Engine Timing Camshaft Sprocket

Part # S892T | Line Code: CLY

$49.95

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Inside Diameter	17.271999999999998
Chain Row Quantity	1
Thrust Bearing Included	N/A
Tooth Width	0.29"
Mount Hole Inside Diameter	0.34"/0.34"/0.34"
Thickness	0.51"
Outside Diameter	6.25"
Mounting Hole Quantity	3
Adjustable	No
Keyway Notch	Yes
Color	Gray
Material	Metal
Universal Or Specific Fit	Specific
Tooth Quantity	38
Outside Diameter (In)	6.25"
Tooth Width (in)	0.29"
Mounting Hole Diameter (uom:in)	0.340
Mounting Hole Diameter (uom:mm)	8.6359999999999992
Width (uom:in)	0.51
Width (uom:mm)	12.954000000000001
Outside Diameter (uom:in)	6.25
Outside Diameter (uom:mm)	158.75
Tooth Width (uom:in)	0.28999999999999998
Tooth Width (uom:mm)	7.3659999999999997
Mount Hole Quantity	3
Mount Hole Diameter	0.34"/0.34"/0.34"
Timing Mark Quantity	1
Part Terminology	Engine Timing Camshaft Sprocket

Features & Benefits

Featuring precision-tooled or machined tooth form and precision-machined bore for true fit, timing chain sprockets offer reliability and dependability for engine rebuilds and typical replacement jobs; Recommended that the chain tensioner(s), sprocket(s), and guide(s) also be replaced when the chain is replaced, as these components play a vital role in system stability and accurate timing; CAD designed and manufactured using premium materials; Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance; Refer to our online catalog for detailed application-specific information
