Timing Parts & Camshafts

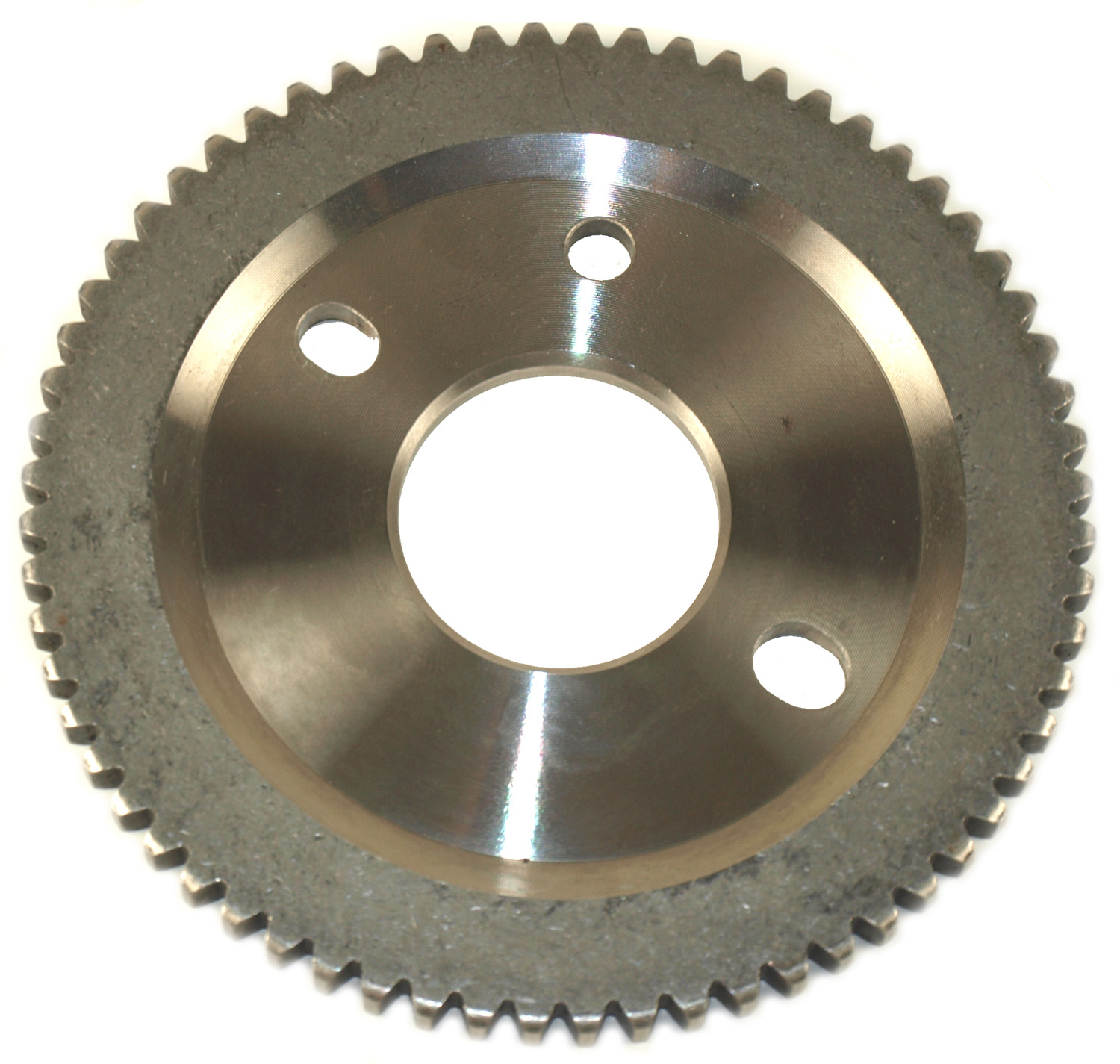

Engine Timing Camshaft Sprocket
Part # S900T | Line Code: CLY
brandNameImage
brandNameImage

$56.95
$56.95
error
Not Fitted

Product Details
expand_less
Material Powdered Metal
Tooth Quantity 64
Width 1.10"
Outside Diameter 5.00"
Mount Hole Inside Diameter 2.0
Inside Diameter 38.1
Color Gray
Universal Or Specific Fit Specific
Chain Type Inverted Tooth
Outside Diameter (In) 5.00"
Mounting Hole Diameter (uom:in) 0.390
Outside Diameter (uom:in) 5
Outside Diameter (uom:mm) 127
Mounting Hole Diameter (uom:mm) 8.13, 9.91
Tooth Width (uom:mm) 27.94
Width (uom:mm) 27.94
Width (uom:in) 1.1
Tooth Width (uom:in) 1.1
Chain Row Quantity 1
Type Inverted Tooth
Timing Marks 1
Mounting Hole Quantity 2
Keyway Notch No
Mount Hole Quantity 0.39" x 0.32"
Mount Hole Diameter 2.0
Timing Mark Quantity 1
Part Terminology Engine Timing Camshaft Sprocket

Features & Benefits
expand_more
Since 1921, Cloyes has been the trusted leader in automotive timing systems. As a critical component of the engine’s timing system, the camshaft sprockets work in unison with the timing chain, tensioners, guides, and other sprockets, to ensure precise timing. Cloyes engine timing crankshaft sprockets are precision-tooled with exact tooth geometry and a perfectly matched bore for superior fit, reliability, and long-term performance. To ensure total timing system integrity, Cloyes recommends replacing the chain along with the tensioners, guides, and sprockets during service. Trusted by professionals for over a century & backed by an industry-leading warranty and technical support.
