Timing Parts & Camshafts

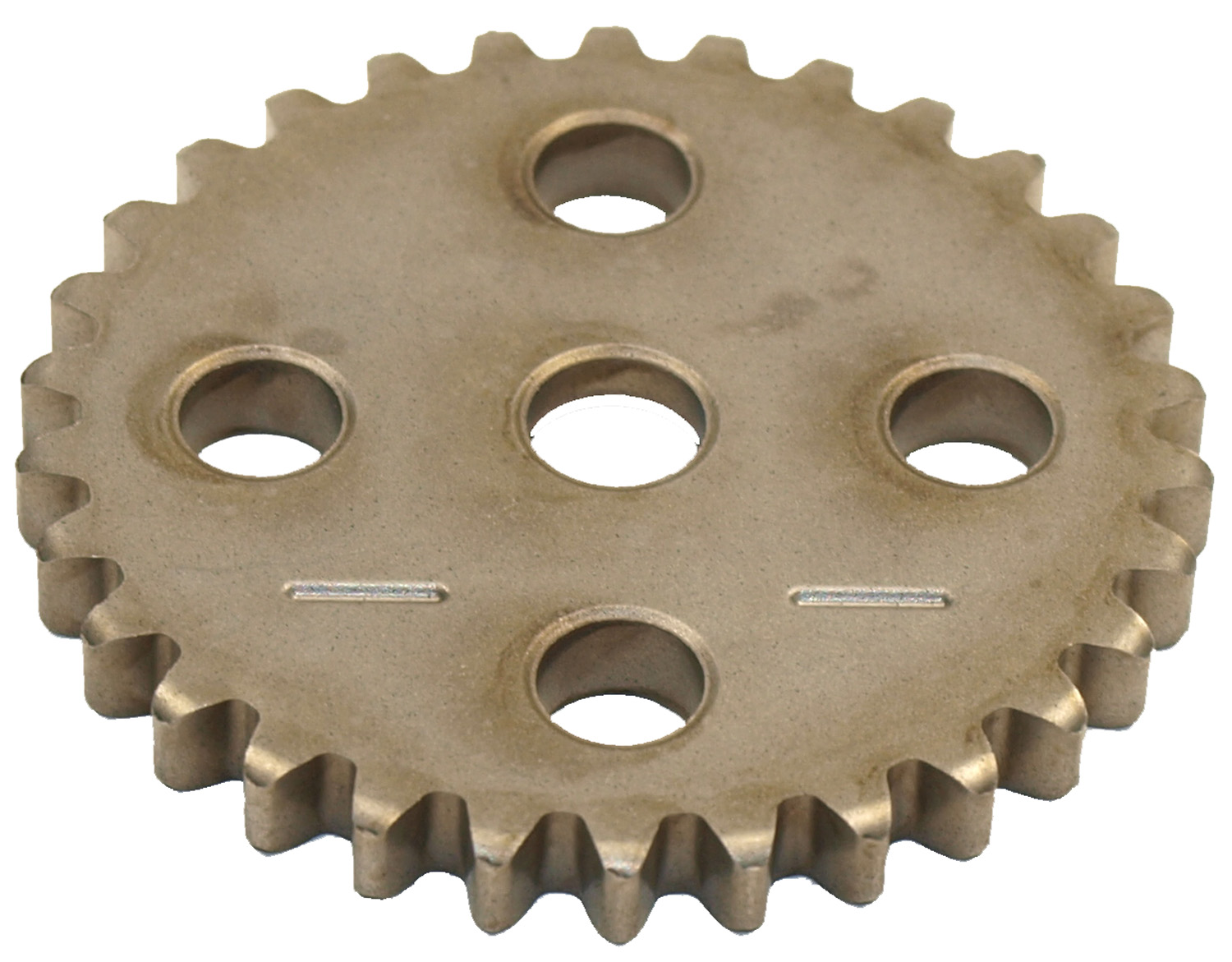

Engine Oil Pump Sprocket
Part # S903 | Line Code: CLY
brandNameImage
brandNameImage

$18.99
$18.99
error
Not Fitted

Product Details
expand_less
Inside Diameter 16.0782
Mounting Hole Quantity 8.7884
Outside Diameter 58.166
Tooth Quantity 30
Chain Row Quantity 1
Thrust Bearing Included N/A
Tooth Width 0.23"
Mount Hole Inside Diameter 0.346"
Thickness 0.23"
Adjustable No
Keyway Notch No
Material Metal
Tooth Width (in) 0.23"
Tooth Width (uom:in) 0.23
Width (uom:in) 0.23
Tooth Width (uom:mm) 5.842
Width (uom:mm) 5.842
Mounting Hole Diameter (uom:in) 0.346
Mount Hole Diameter 0.346"
Part Terminology Engine Oil Pump Sprocket

Features & Benefits
expand_more
Since 1921, Cloyes has been the trusted leader in automotive timing systems. In some applications the engine oil pump sprocket can be a critical component or adjacent to the engine’s timing system. Cloyes engine oil pump sprockets are precision-tooled with exact tooth geometry, a perfectly matched bore, and off-set for a superior fit, reliability, and long-term performance. To ensure total system integrity, Cloyes recommends replacing the chain along with the tensioners, guides, and sprockets during service. Trusted by professionals for over a century & backed by an industry-leading warranty and technical support.
