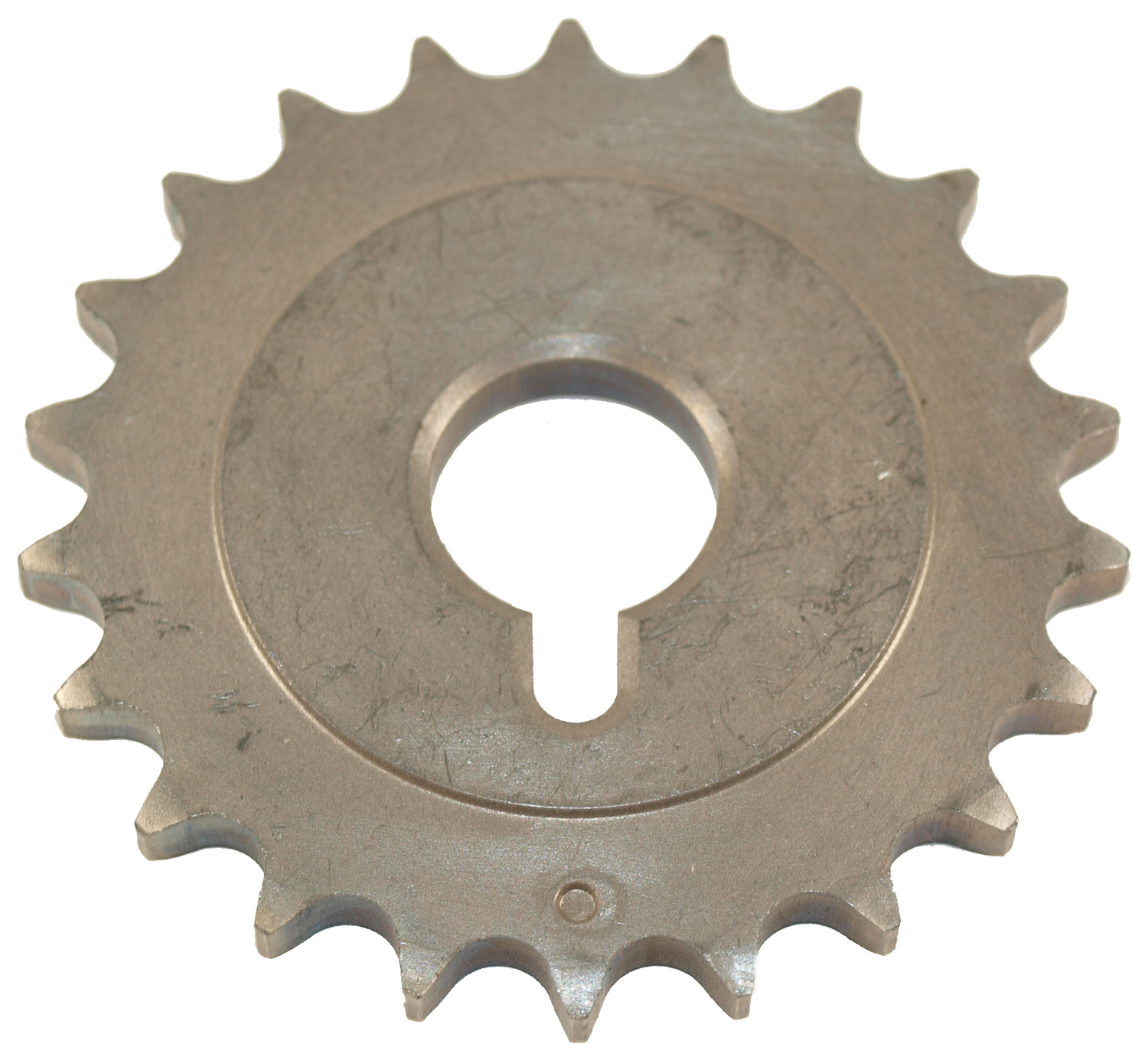

Engine Timing Camshaft Sprocket Cloyes S960T

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

Engine Timing Camshaft Sprocket

Part # S960T | Line Code: CLY

$32.95

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Inside Diameter	18.033999999999999
Chain Row Quantity	1
Thrust Bearing Included	N/A
Outside Diameter	2.75"
Mount Hole Inside Diameter	0.71"
Tooth Width	0.20"
Thickness	0.25"
Mounting Hole Quantity	1
Adjustable	No
Tooth Quantity	22
Keyway Notch	Yes
Color	Gray
Material	Metal
Universal Or Specific Fit	Specific
Tooth Width (in)	0.20"
Outside Diameter (In)	2.75"
Width (uom:in)	0.25
Width (uom:mm)	6.35
Tooth Width (uom:mm)	5.08
Tooth Width (uom:in)	0.2
Mounting Hole Diameter (uom:in)	0.71
Mounting Hole Diameter (uom:mm)	18.033999999999999
Outside Diameter (uom:in)	2.75
Outside Diameter (uom:mm)	69.849999999999994
Mount Hole Quantity	1
Mount Hole Diameter	0.71"
Timing Mark Quantity	1
Part Terminology	Engine Timing Camshaft Sprocket

Features & Benefits

Featuring precision-tooled or machined tooth form and precision-machined bore for true fit, timing chain sprockets offer reliability and dependability for engine rebuilds and typical replacement jobs; Recommended that the chain tensioner(s), sprocket(s), and guide(s) also be replaced when the chain is replaced, as these components play a vital role in system stability and accurate timing; CAD designed and manufactured using premium materials; Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance; Refer to our online catalog for detailed application-specific information
