Engine Timing Camshaft Sprocket Cloyes S964T

Roll over image to zoom in. Click image to open expanded view.

Tap image to open expanded view.

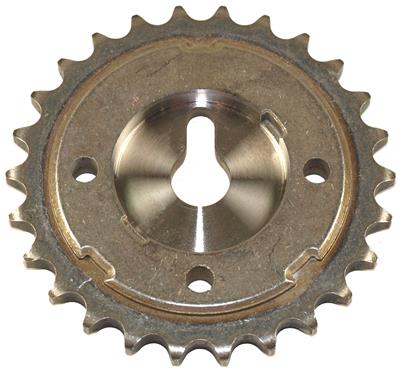

Engine Timing Camshaft Sprocket

Part # S964T | Line Code: CLY

$29.95

Not Fitted

See Product Details

store

Pickup

Select a store for availability

Product Details

Chain Row Quantity	1
Tooth Quantity	26
Thrust Bearing Included	N/A
Mount Hole Inside Diameter	0.50"
Outside Diameter	3.20"
Thickness	0.35"
Tooth Width	0.208"
Inside Diameter	12.7
Mounting Hole Quantity	1
Adjustable	No
Keyway Notch	Yes
Keyway Adjustable	No
Color	Gray
Material	Metal
Universal Or Specific Fit	Specific
Camshaft Sprocket Material	Metal
Tooth Width (in)	0.208"
Outside Diameter (In)	3.20"
Mounting Hole Diameter (uom:in)	0.5
Width (uom:in)	0.35
Width (uom:mm)	8.89
Outside Diameter (uom:in)	3.2
Outside Diameter (uom:mm)	81.28
Tooth Width (uom:in)	0.20799999999999999
Tooth Width (uom:mm)	5.2831999999999999
Mount Hole Quantity	1
Mount Hole Diameter	0.50"
Timing Mark Quantity	2
Mounting Hole Diameter (uom:mm)	12.7
Part Terminology	Engine Timing Camshaft Sprocket

Features & Benefits

Featuring precision-tooled or machined tooth form and precision-machined bore for true fit, timing chain sprockets offer reliability and dependability for engine rebuilds and typical replacement jobs; Recommended that the chain tensioner(s), sprocket(s), and guide(s) also be replaced when the chain is replaced, as these components play a vital role in system stability and accurate timing; CAD designed and manufactured using premium materials; Each part is extensively tested and measured for function, fitment, and durability to ensure optimal performance; Refer to our online catalog for detailed application-specific information
