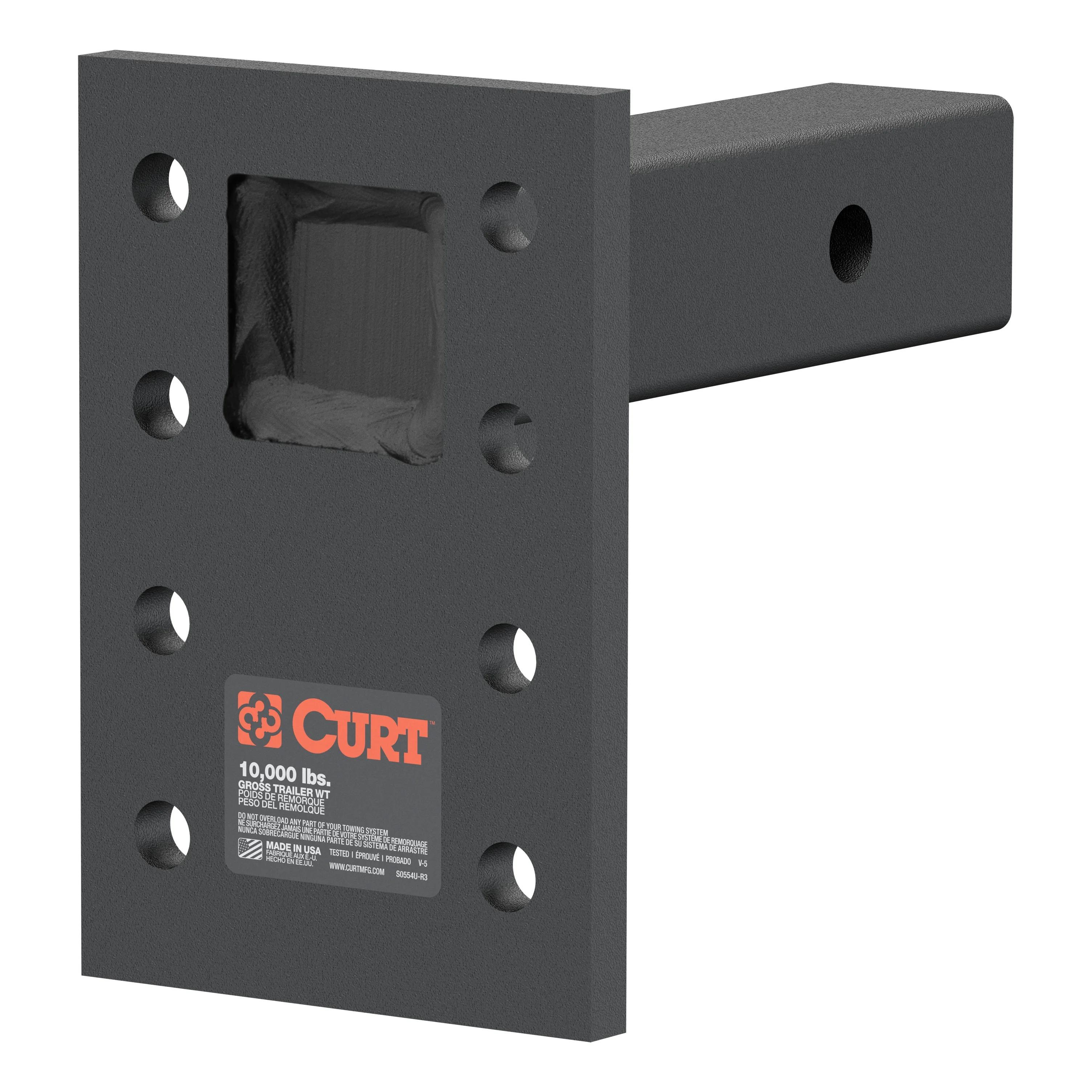

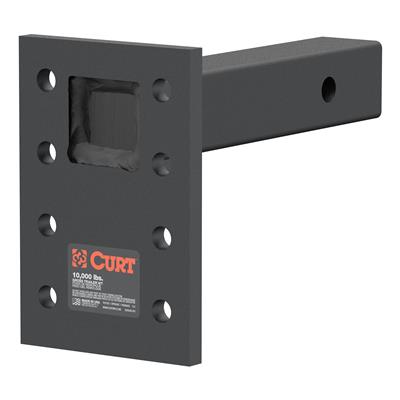

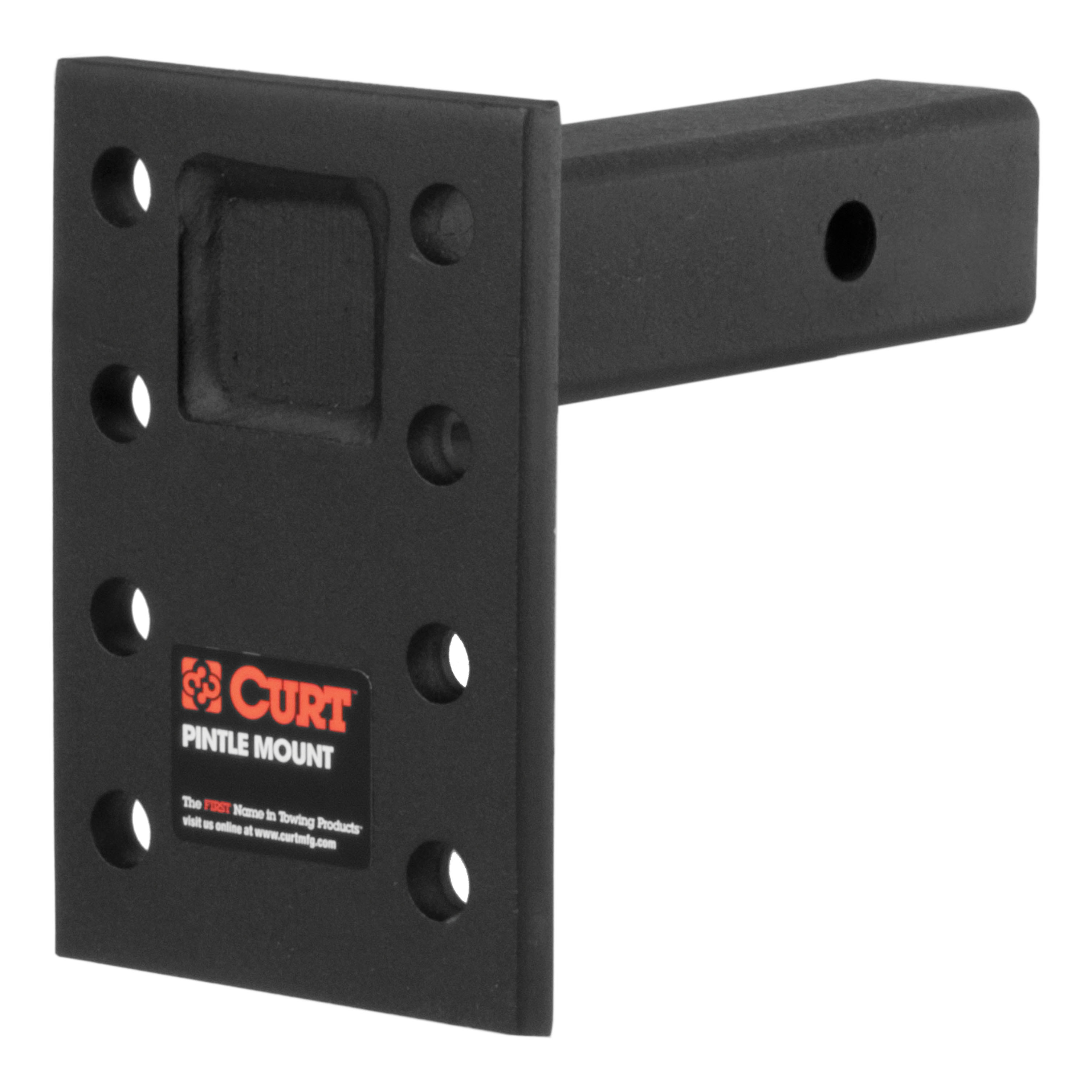

Adjustable Pintle Mount (2" Shank, 10,000 lbs., 7" High, 6" Long)
Part # 48323 | Line Code: CUR
brandNameImage
brandNameImage

$54.99
$54.99
error
Not Fitted

Product Details
expand_less
Sales Family Code - XA ACCES
Sales Family Description - XA ACCESSORIES
Truckload Pallets Qty - XA 18
Container Pallet Qty - XA 18
Container Type - XA 20GP
Master Case Qty - XA 2
Pallet Layer of Cases - XA 3
Container Load Type - XA PALLETS
Pallet Total Height Inches - XA 35.000
Pallet Cases Per - XA 72
Gross Trailer Weight (GTW) 10,000 LB
Pallet Cases Per Layer - XA 24
Container Cases Qty - XA 1296
Pallet Case Per - XA 72
Container Unit Qty - XA 2592
Master Case Height Inches - XA 9.450
Pallet Case Per Layer - XA 24
Master Case Length Inches - XA 11.420
Sales Group Description - XA PINTLE MOUNT
Truckload Units Qty - XA 2592
Master Case Width Inches - XA 5.910
Container Volume Cubic Feet - XA 687.00000
Container Weight Lbs - XA 38910
Master Case ITF14 20612314523003
Master Case ITF14 - XA 20612314523003
Master Case Weight Lbs - XA 29.260
Pallet Qty - XA 175.000
Pallet Total Weight Per - XA 2161.720
Truckload Cases Qty - XA 1296
Truckload Weight - XA 38910
Warranty Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
Receiver Tube Size 2
Parcel Allowed - XA Yes
Rate Class - XA 70.0
Box Width in Inches - XA 2
Item Length - XA 0.000
Product Weight - XA 0.000
Retail Length - XA 9.000
Item Height - XA 0.000
Box Length in Inches - XA 7
Box Height in Inches - XA 2
Class ID 0
Item Width - XA 0.000
Item Class - XA OBS
Finish - XA CARBIDE BLACK POWDER COAT
Retail Height - XA 5.000
Gross Trailer Weight(GTW) 10,000 LB
Retail Width - XA 8.000
Max Rise 1/2 IN
Max Drop 6.5
Plate Height 7
Shank Length 8-1/2 IN
Shipping Weight - XA 14.130
Title Adjustable Pintle Mount (2" Shank, 10,000 lbs., 7" High, 6" Long)
Heavy Duty Supplier Yes
Container Volume Cubic Meter - XA 0.00000
Container Weight KG - XA 0
Master Case Inner Pack Qty - XA 0
Master Case Volume Cubic Feet - XA 0.00000
Material - XA Blank
Mount Type Description - XA Blank
Side Application Type Description - XA Blank
Truckload Volume Cubic Feet - XA 0.00000
Prop 65 Label Text - XA Blanks
Prop 65 Material - XA Unknown
Prop 65 Reason - XA Unknown
Prop 65 Warning Label Type - XA Unknown
Prop 65 Warning Y/N - XA NO
Tariff 301 - XA Yes
Part Terminology Trailer Hitch Pintle Hook Mount

Features & Benefits
expand_more
In agriculture, construction and even military applications, pintle hitches are the trusted product of specialized towing. They are notorious for their high weight capacity and simple design. The basic pintle hitch is essentially a hook and loop, with the hook attached to the vehicle and the loop mounted on the trailer. Because of their simple design, pintle hitches are able to have thicker metal construction and more secure coupling. CURT has a wide variety of pintle hitches and pintle-style products to give you a complete solution for your heavy-duty towing needs. This adjustable pintle mount is designed to accept a bolt-on pintle hook or combination ball and pintle. It features a series of mounting holes to provide three different mounting heights for the hook and can be mounted in any 2\" x 2\" receiver tube opening. This pintle mount offers a gross trailer weight capacity up to 10,000 lbs. and features a total plate height of 7\", providing up to 6-1/2\" of drop (NOTE: Not for use in rise position; never exceed the lowest weight capacity of any towing component; i.e. the vehicle, hitch, trailer, etc). The heavyweight towing done with pintle hitches implies a certain amount of wear and tear on your towing equipment, and to prepare for this, CURT uses a quality finish on all our pintle mounts, lunette eyes and combination pintle hitches. This pintle mount is coated in a tough black carbide powder coat finish to provide the perfect amount of rust and scratch resistance needed to face the heavy-duty towing you do every day.
