Gasket Or Seal Included | Included |
Material | Aluminum / Rubber |
Fittings Included | Included |
Component Type | Suction Line |
System Pressure | Low Pressure |
Switch Service Port | w/ Switch Port |
End 1 Type | Springlock |
End 2 Type | Male Springlock |
Refrigerant Type | R134a |
Switch Port Size | 7/16" - 20 |
Heavy Duty Supplier | Yes |
Switch Included? | Not Included |
O.E. Replacement? | Yes |
Gasket / Seals? | Included |
Service Port? | w/o Service Port |
Switch Port? | w/ Switch Port |
O-Ring C Quantity | 1 |
O-Ring B Quantity | 3 |
O-Ring E Quantity | 1 |
O-Ring D Quantity | 1 |
O-Ring A Quantity | 3 |
Bracket? | w/o Bracket |
Muffler? | w/o Muffler |
Description | Hose Assemblies |
Type | Suction Line |
O-Rings Included? | Seal Included |
Style | Hose Assy /Suction |
Orifice Tube? | Not Included |
Componet Type | Suction Line |
Switch Port Quantity | 1 |
Suction End Type | Springlock |
Service Port Type | Service Port |
Discharge End Type | Springlock |
Service Port Size | 1/4 |
O-Ring E Number/Desc | [24222] / Spring |
California Proposition 65 | WARNING: This product contains a chemical known to the State of California to cause cancer and birth defects or other reproductive harm. |
O-Ring A Number/Desc | 24670 / Green O-Ring |
O-Ring B Number/Desc | 24672 / Green O-Ring |
O-Ring C Number/Desc | 24676 / Green O-Ring |
O-Ring D Number/Desc | 24220 / Spring |

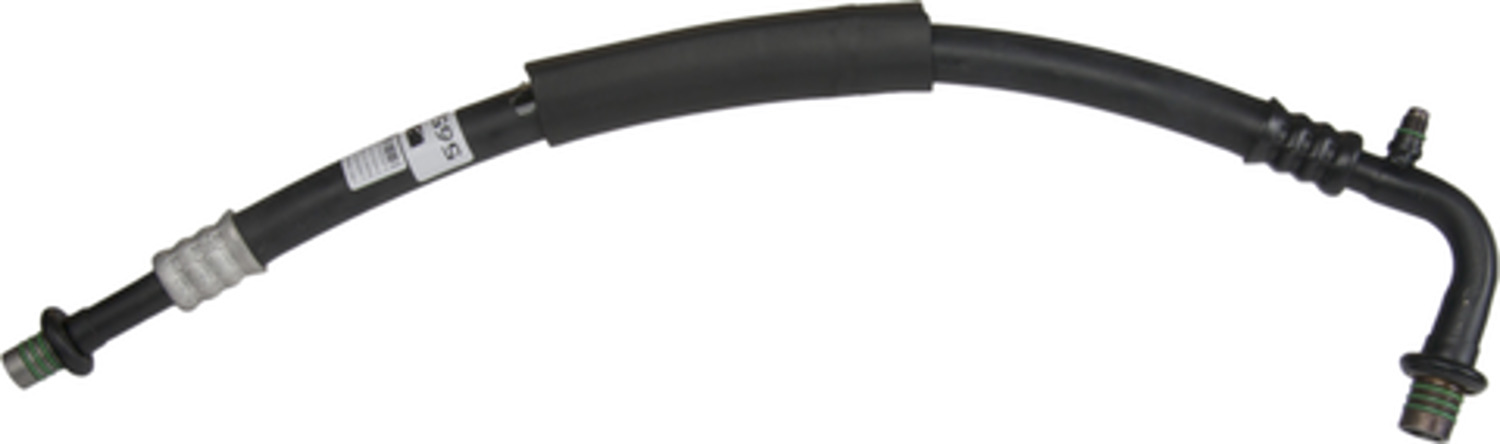

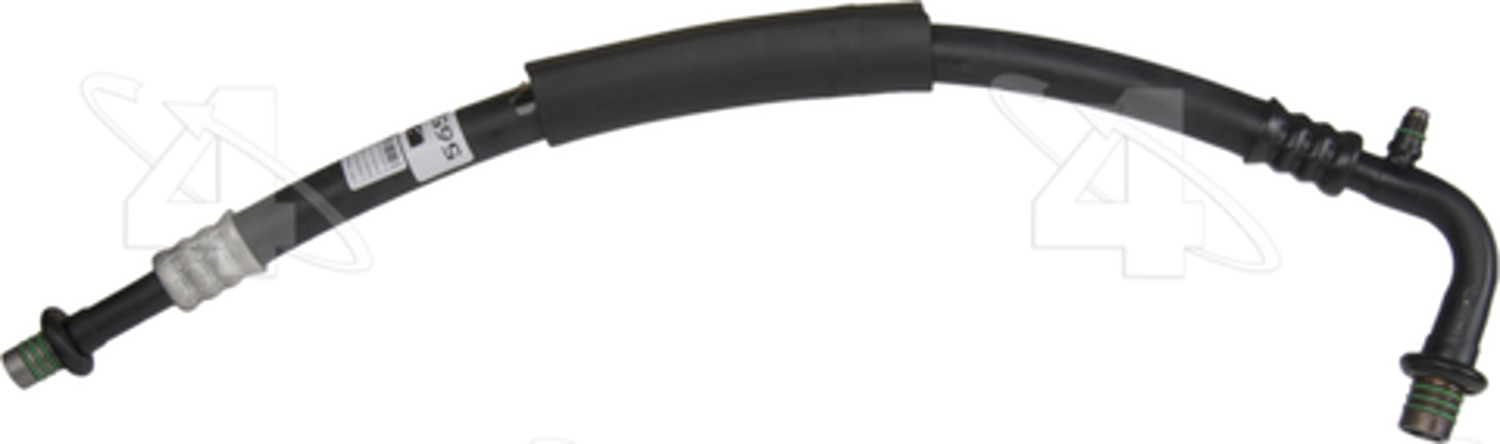

Part Terminology | A/C Refrigerant Suction Hose |
