Clutch & Flywheel

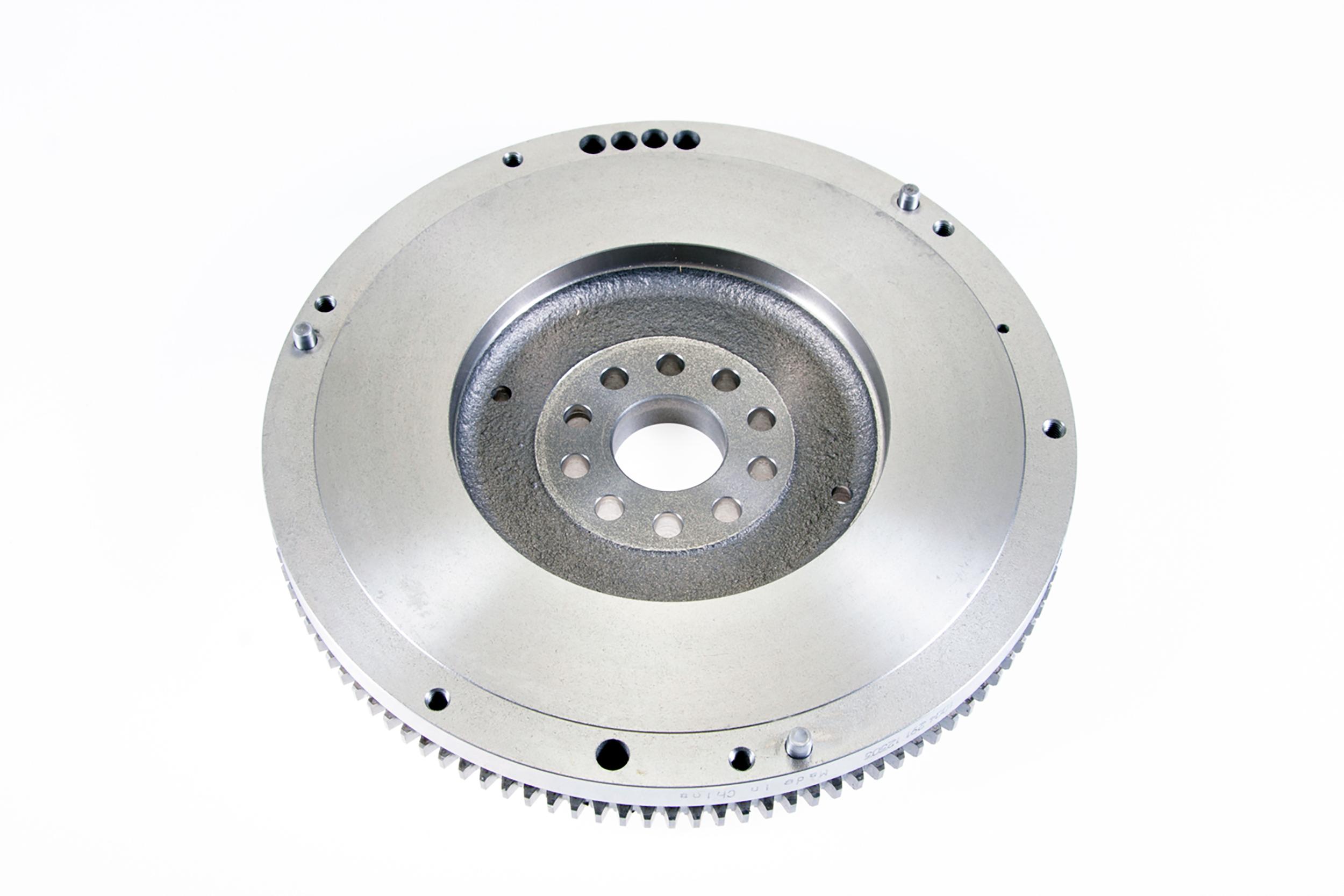

Oe quality flywheel
Part # LFW200 | Line Code: LUK

Not Fitted / Universal

Product Details
Flywheel Diameter 10.039
Flywheel Inner Diameter 6.22
Flywheel Cup Depth/Step Height 0.022
Number of Teeth 115
Dowel Hole Pattern 5
Has Dowel Pins with Dowel Pins
Dowel hole diameter 8
Number of teeth, starter ring gear 115
Flywheel Friction Surface Inner diameter 158
Ring Gear Chamfer Position @ 6:00 O´clock Left
Ring Gear Chamfer Side Engine
Flywheel matches Clutch Flywheel matches Clutch
Number Of Mounting Bores 26
Bolt Hole Pattern 4
Ring Gear Major Dia. 294.64
Flange Thickness 18.16
I.D. for Pilot 41.92
Overall Casting O.D. 291.94
Ring Gear Thickness 9.18
Flywheel Cup Depth or Step Height 0.56
Bolt hole PCD crankshaft 2.8346
Flywheel friction surface outer diameter 10.0394
Bolt hole PCD clutch pres.plte 10.8268
Centering diameter / dowel hole 10.8268
Ring Gear Mounting O.D. 10.2461
Crank To Friction Surface 1.5169
Flywheel Thickness [mm] 1.4736
Crank Hole Dia. 0.4118
Part Terminology Clutch Flywheel

Features & Benefits
LuK: New flywheels are a smart alternative! The flywheel is an integral part of clutch replacement. It must provide a smooth, flat surface for proper clutch operation. Pairing your clutch set with a new LuK flywheel is a smart, cost-effective alternative to resurfacing. All new - never remanufactured every component is engineered and manufactured to OE specifications, including ring gear and dowel pins.

Application Summary

Toyota 4Runner 1996-2000 (L4, 2.7L), Toyota T100 1994-1998 (L4, 2.7L), Toyota Tacoma 1995-2004 (L4, 2.7L)
