Radiator Cap Fan Motor & Switch

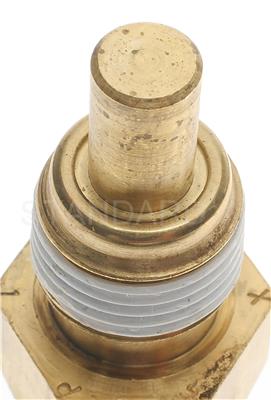

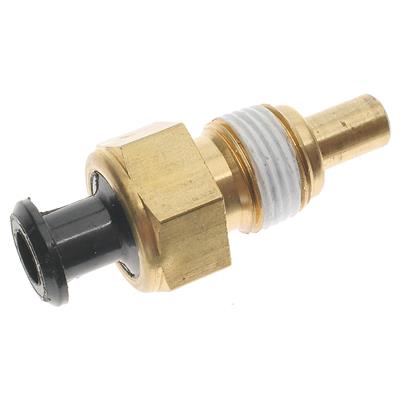

Coolant fan switch
Part # TS147 | Line Code: STD
brandNameImage
brandNameImage

$22.99
help
Not Fitted / Universal

Product Details
expand_less
Terminal Type Bullet
Connector Gender Female
Terminal Quantity 1
California Proposition 65 Warning: This product contains a chemical known to the State of California to cause birth defects or other reproductive harm.
Connector Shape Round
Mounting Bracket(s) Included No
Voltage 12
Housing Material Metal
Wire Quantity 0
Color/Finish Gold
Attachment Method Screw-on
Switch Actuation Style Toggle
Thread Size 16MMX1.50
Open at Idle Yes
Switch Shape Round
Overall Width (MM) 14.732
Width - Inches 0.58
Connector Quantity 1
Hardware Included No
Terminal Gender Male
Wiring Harness Included No
Bulb Included No
Part Terminology Engine Cooling Fan Switch

Features & Benefits
expand_more
Robust design and high grade materials meet the stringent demands of today's service professional. In design, we specify custom wax formulations that will expand when heated, activate a snap action electrical contact and transfer the electrical signal to the fan controller. In manufacturing, we custom form the wax pellets for different temperature range specifications. All units are calibrated and tested to confirm switch actuation at their specified temperature. The switch is designed using a formed bimetallic contact arm. The bimetal contact movement is achieved using the different expansion rates of two metals fused together. This is a creep action device, provides precise performance. In production, all thermal switches are factory-calibrated to make electrical contact at the specified lower-temperature set point.
