U & CV Joints & Drive Shaft

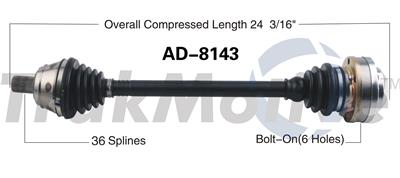

Cv axle shaft
Part # AD-8143 | Line Code: TRM

Not Fitted / Universal

Product Details
Outboard Joint Type Audi Style Spline Bolt
Inboard Joint Type Bolt-On
Axle Nut Locking Type N/A
Axle Nut Hex Size (in) N/A
Axle Nut Height (mm) N/A
Axle Nut Length (mm) N/A
Axle Nut Height (in) N/A
Axle Nut Head Type N/A
Number Of Outboard Shaft Bolts 1
Axle Nut Length (in) N/A
Inboard Bolt Length (in) 2 1/6
Inboard Bolt Head Type Allen
Inboard Bolt Length (mm) 55
Inboard Bolt Thread Size M10*1.5
Inboard Bolt Head Size (mm) 8
Number Of Inboard Shaft Bolts 6
Overall Compressed Length (mm) 614
Overall Compressed Length (in) 24.17
Number of Bolt Holes 1
Axle Bolt Hex Size (mm) 27
Axle Bolt Thread Size M16*1.5
Number Of Inboard Joint Bolt Holes 6
Axle Bolt Length (mm) 97
Number of Outboard Splines 36
Number Of Outboard Joint Bolt Holes N/A
Number Of Inboard Splines N/A
Axle Nut Hex Size (mm) N/A
Axle Nut Thread Size N/A
ABS Ring Type N/A
ABS Ring Tooth Count N/A
Inboard Bolt Head Size (in) 1/3
New Or Remanufactured New
Boot Material Neoprene
Outboard Bolt Head Size (in) N/A
Outboard Joint Bolt Thread Size N/A
ABS Tone Ring Included No
Outboard Bolt Head Size (mm) N/A
Outboard Bolt Length (in) N/A
Outboard Bolt Head Type N/A
Outboard Bolt Length (mm) N/A
Outboard Shaft Connection Style Spline
Inboard Shaft Connection Style Bolt-On
Axle Nut Included No
Part Terminology CV Axle Shaft

Features & Benefits
Limited Lifetime Warranty. ABS axles fit non-ABS applications unless otherwise noted. ISO 9001:2008 and TS 16949:2009 Certified Company
